Standard Glass－Lined Reactor Technical Characteristics
|
允许工作压力PN
Permissible Working Pressure PN
|
罐内Tank inside≤0.37MPa
夹套内IN jacket≤0.58 MPa
|
|
允许工作温度
Permissible Working Temperature
|
罐内Tank inside 0－200℃
夹套内IN jacket 0－200℃
|
|
允许搅拌转速
Permissible Speed of Agitator
|
锚式、框式63、80r/min
Anchor、Frame63、80 r/min
桨式叶轮式
Impller/Paddle≤125r/ min
|
1、搅拌轴为填料密封时罐内工作压力不超过0.25Mpa
Permissimle Working pressure inside the tank is under 0.2Mpa When the
agitator shaft stuffing sealde。
2、k3000L以上（含K3000L）框式搅拌转速≤63r/min
The Speed of Frame agitator （above 3000L）is no more than 63r/min

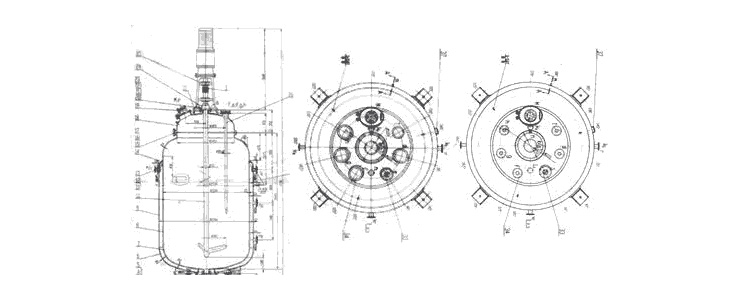

尺寸表 Dimension Table mm
|
代 号Designation |
公称容积Nominal Volume VN (L)
|
|
10000 |
12500 |
15000 |
20000 |
|
DN |
2200 |
2400 |
2400 |
2600 |
|
DO |
1060/1050 |
1680 |
1050 |
1160 |
|
D1 |
2400 |
2600 |
2600 |
2800 |
|
D2 |
2734 |
2940 |
2940 |
3181 |
|
D3 |
36 |
36 |
36 |
36 |
|
D4 |
95×8 |
95×8 |
95×8 |
95×8 |
|
D5 |
1450/1600 |
800/1450 |
1600 |
1750 |
|
H |
3443/3400 |
3655 |
4130 |
4650 |
|
H1 |
1375/1335 |
1500 |
1400 |
1550 |
|
H2 |
552/589 |
900 |
589 |
637 |
|
H3 |
470 |
470 |
470 |
470 |
|
H4 |
510 |
550 |
550 |
550 |
|
H5 |
935/895 |
1040 |
1100 |
1020 |
|
H6 |
2735/2695 |
3220 |
3440 |
3520 |
|
H7 |
2600 |
2600 |
2600 |
3000 |
|
L |
7190/7000 |
6475 |
7970 |
8435 |
|
